Moulton New Series MARATHON
Moulton New Series MARATHON
Please note that Moulton bicycles are all handmade in England to order and at present we have limited stock. Current stock can be viewed HERE. Current lead times for new orders can be found HERE.
WE DO NOT SHIP OUTSIDE MAINLAND GB.
The new generation of comfort and speed, the NS MARATHON features advanced Flexitor® front suspension, Hydrolastic® rear suspension, an extended Reynolds 953 stainless-steel seat post, and a lighter, stiffer, polished stainless steel frame.
NEW FOR 2022 - NOW AVAILABLE IN A NON-STAINLESS PAINTED VERSION FOR £9250
We encourage customers to collect their bikes from our shop in Stratford-upon-Avon so we can fully assemble the bike and adjust it to fit perfectly. We can also deliver to any UK address for £40. Bikes are boxed and need a small amount of assembly on arrival – usually the pedals need to go on and the handlebars need straightening – We can talk you through this if needed.
Additional Information
Please note that Moulton bicycles are all handmade in England to order and at present we have no stock. Current lead times can be found HERE.
WE DO NOT SHIP OUTSIDE MAINLAND UK.
New Series MARATHON Features
Wheel Size: 20"
Frame: 'Shot-in' tube construction in aerospace stainless steel / HTS with Reynolds 853 steel forks. Silver fillet brazed by hand.
Front Suspension: Moulton Flexitor® (with adjustable bump-stop and soft lock-out).
Rear Suspension: Moulton Hydrolastic® with Moulton Flexitor® pivot
Separability: Separates into two halves via removal of kingpin. Front and rear forks are also easily removed to reduce packing size.
Frame Finish: Polished stainless steel with painted highlights / Painted
Rear Carrier: Fits optional Large Rear or Pylon Day Carrier
New Series MARATHON Campagnolo Record Specification (Stainless)
Colours: Polished stainless steel and painted highlight colour of choice (see colour chart)
Gears: 24
Spec: Campagnolo Record
Gear type: Derailleur
Handlebar: Drop - Deda Speciale classic (44 or 42)
Handlebar stem: Moulton Wishbone Q (90, 140 or 160mm)
Handlebar tape: Brooks Leather
Headset: GB Tange Levin Alloy 1" threaded, sealed
Seatpost: Moulton Titanium, layback head
Saddle: Brooks B17 Titanium
Brake levers: Campagnolo Record 12
Gear levers: Campagnolo Record 12
Brakes: DP CNC sidepull 57 (for Moulton)
Front mech: Campagnolo Record
Rear mech: Campagnolo Record
Crankset: Campagnolo Record Carbon Ti
Bottom bracket: Campagnolo Ultra-Torque (ceramic)
Cassette/sprocket: Moulton 10-32
Chain: Connex 11sX
Pedals: MKS Promenade q/r
Front hub: Moulton custom forged 28h silver 70mm
Rear hub: Moulton custom forged 28h silver
Spokes: Sapim Laser/Force butted (differential)
Rims: Moulton MT20, Black, CNC brake track
Tyres: Schwalbe Durano (Kevlar) 28-406
Gear range: Touring = 23-99" (53/39); Sport = 26-108" (58/44)
Build options: Threadless steering column, Moulton 20” Alloy
New Series MARATHON Campagnolo Record Specification (Painted)
Colours: Steely Grey, New Blue, Olive Green.
Gears: 24
Spec: Campagnolo Record
Gear type: Derailleur
Handlebar: Drop - Deda Speciale classic (44 or 42)
Handlebar stem: Moulton Wishbone Q (90, 140 or 160mm)
Handlebar tape: Brooks Leather
Headset: Tange Alloy 1" threadless, sealed
Seatpost: Moulton 953, layback head
Saddle: Brooks B17 Titanium
Brake levers: Campagnolo Record 12
Gear levers: Campagnolo Record 12
Brakes: DP CNC sidepull 57 (for Moulton)
Front mech: Campagnolo Record
Rear mech: Campagnolo Record
Crankset: Campagnolo Record Carbon Ti
Bottom bracket: Campagnolo Ultra-Torque (ceramic)
Cassette/sprocket: Moulton 10-32
Chain: Connex 11sX
Pedals: MKS Promenade q/r
Front hub: Moulton custom forged 28h silver 70mm
Rear hub: Moulton custom forged 28h silver
Spokes: Sapim Laser/Force butted (differential)
Rims: Moulton MT20, Black, CNC brake track
Tyres: Schwalbe Durano (Kevlar) 28-406
Gear range: Touring = 23-99" (53/39); Sport = 26-108" (58/44)

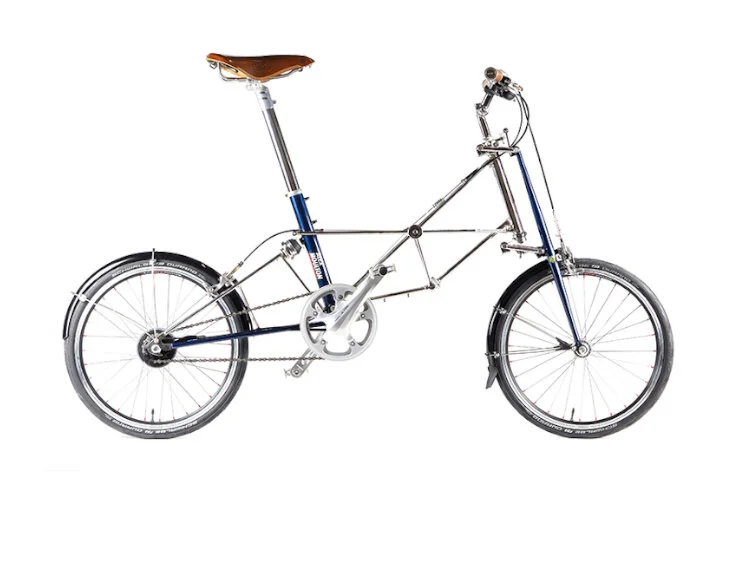

New Series MARATHON Shimano Alfine 11 Specification
Colours: Polished stainless steel and painted highlight colour of choice (see colour chart)
Gears: 11
Spec: Campagnolo Super Record
Gear type: Derailleur
Handlebar: M special flat bar
Handlebar stem: Moulton Wishbone Q (90, 140 or 160mm)
Handlebar grips: Brooks Leather (slender)
Headset: GB Tange Levin Alloy 1" threaded, sealed
Seatpost: Moulton 953, layback head
Saddle: Brooks B17 Titanium
Brake levers: Tektro FL750
Gear levers: Shimano Alfine rapidfire
Brakes: DP CNC sidepull 57 (for Moulton)
Front mech: n/a
Rear mech: n/a
Crankset: Shimano Alfine 45t w/chainguard
Bottom bracket: Shimano Hollowtech II
Cassette/sprocket: 17t
Chain: Connex 1/2 x 3/32" stainless
Pedals: MKS Promenade q/r
Front hub: Moulton custom forged 28h silver 70mm
Rear hub: Shimano Alfine 11 speed 32h silver
Spokes: Sapim Laser butted front/PG rear
Rims: Moulton MT20, Black, CNC brake track
Tyres: Schwalbe Durano (Kevlar) 28-406
Gear range: 26-106" (45/17)
Build options: Threadless steering column
Weight: 11.1kg
